QuickServe II Dumbwaiter

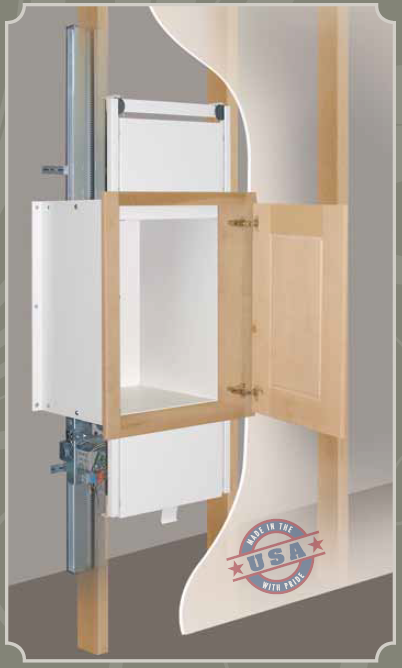

Plug and play simple installation makes installation easy and can be done in half the time as it takes to install other dumbwaiters. The QuickServe II uses a rack and pinion drive so there are no cables, chains, or drums to install. The entire motor and electronics assembly comes pre-assembled on the lower section of the track. Major features include:
- Rack and pinion drive
- No slack cable lock-ups
- Battery operated
- Fast and easy installation – plug and play
- Aluminum rail instead of steel T-rail
- No separate machine room required
- No remote mounted controller
- On board diagnostic troubleshooting LED light
- 20" Wide x 20" Deep x 30" High – 275 lbs capacity
- 24" Wide x 24" Deep x 30" High – 275 lbs capacity
- 30" Wide x 30" Deep x 36" High – 275 lbs capacity
- Optional stainless steel car
- Warranty 5 years on motor and gear, and 2 years on all other parts
Max Travel - Standard
10'
Max Travel - Optional
30'
Car Size - Standard
20Wx20Dx30H or 24Wx24Dx30H
Car Size - Optional
30Wx30Dx36H
Stops - Standard
2
Stops - Optional
3 or 4
Weight Capacity - Standard
275
Weight Capacity - Optional
275
Stainless Steel Panel Option
Yes
Hardwood Door Option
Yes
Straight Through Car Option
Yes
90° Car Option
Yes
- Brochure
- Specifications
- Owner's Manual
- Installation Manual
- 90 Degree Left Hand Drawing
- 90 Degree Right Hand Drawing
- Pass Through Drawing
- Single Front Entry Drawing
- Single Left Hand Entry Drawing
- Single Right Hand Entry Drawing
- Optional Fire Door - Dry Wall Install Drawing
- Optional Fire Door - Masonry Install Drawing
