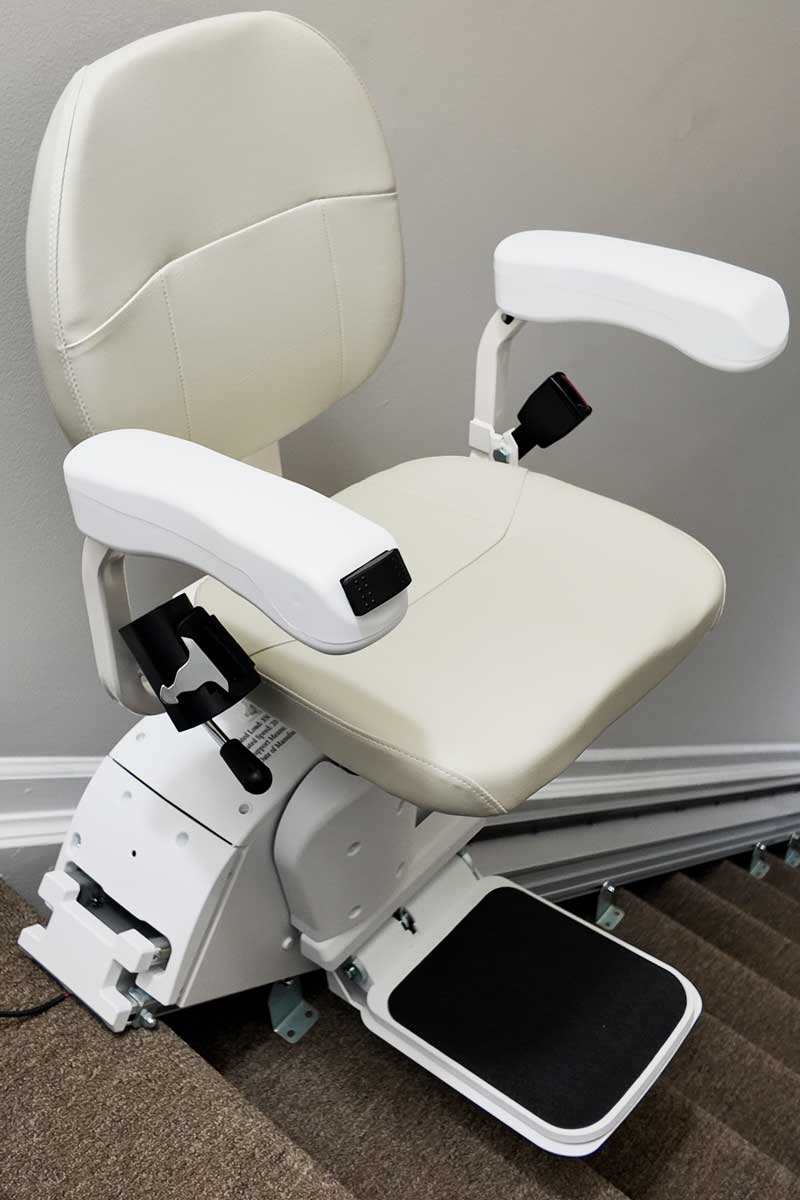

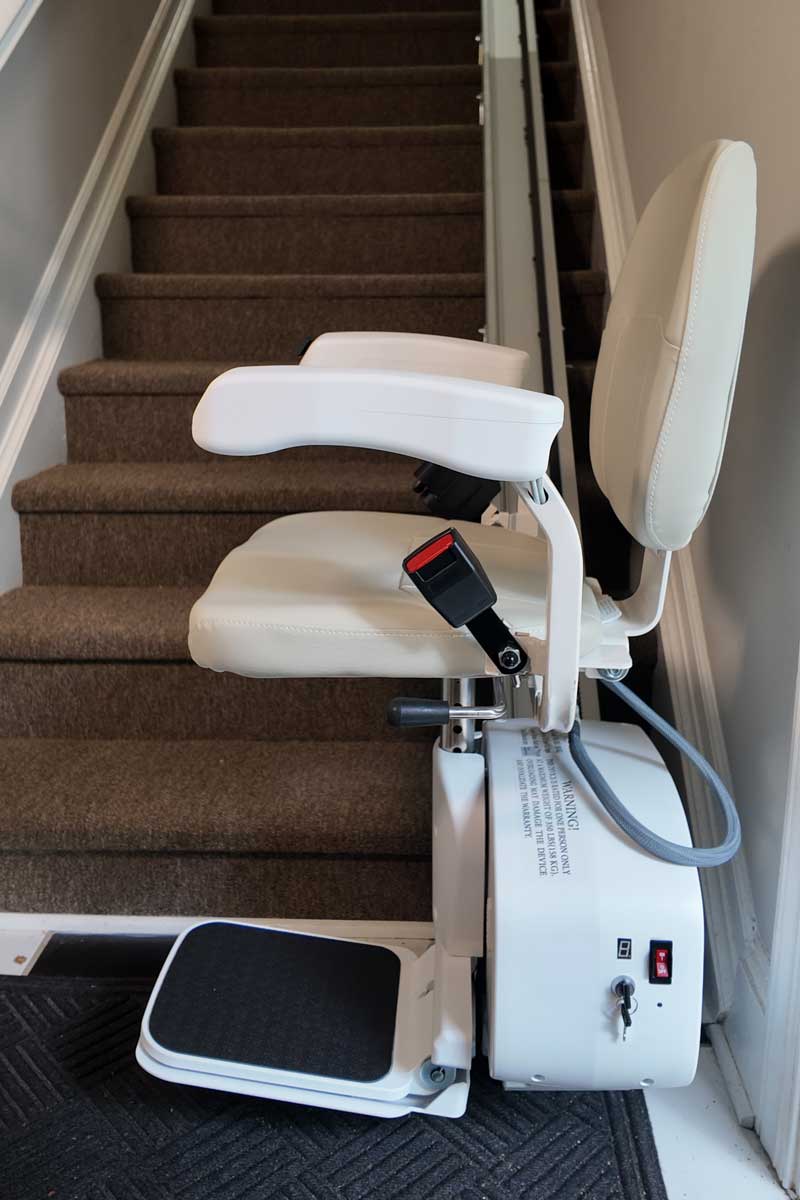

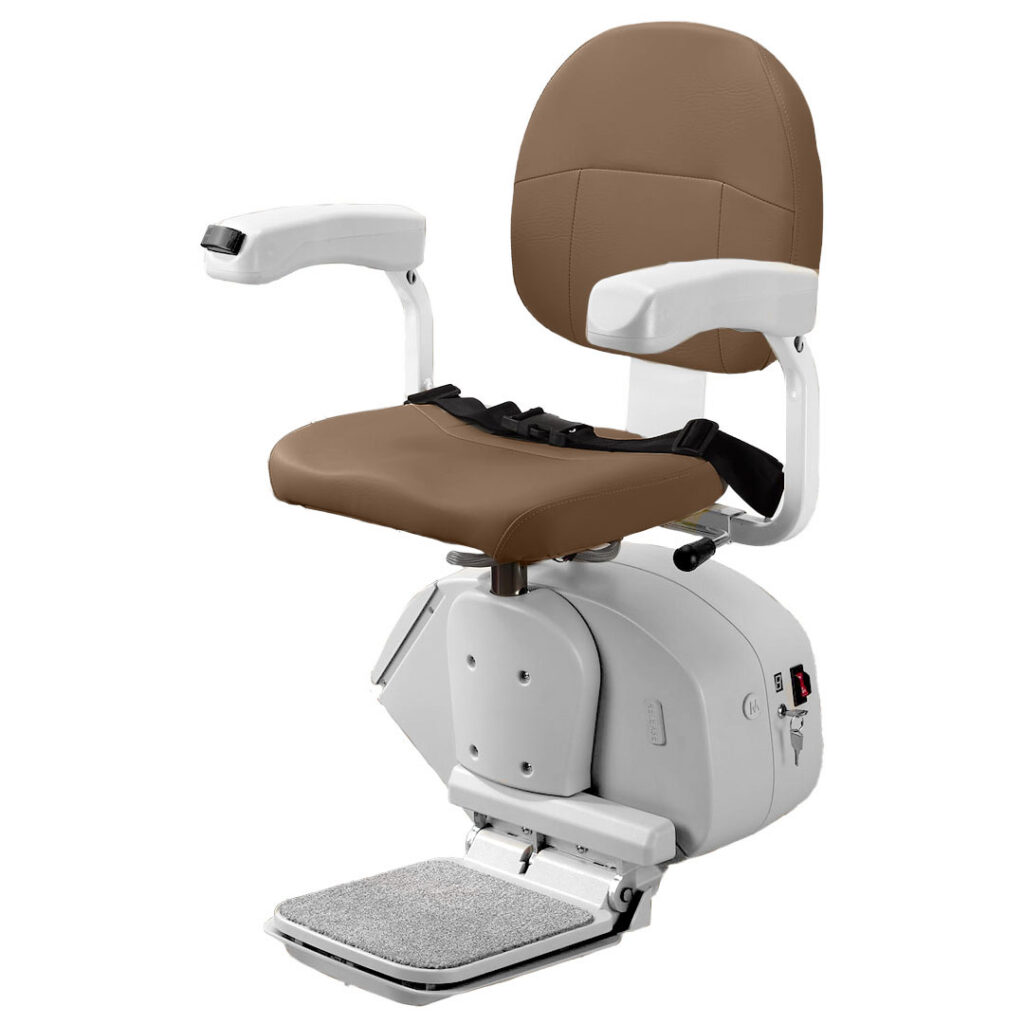

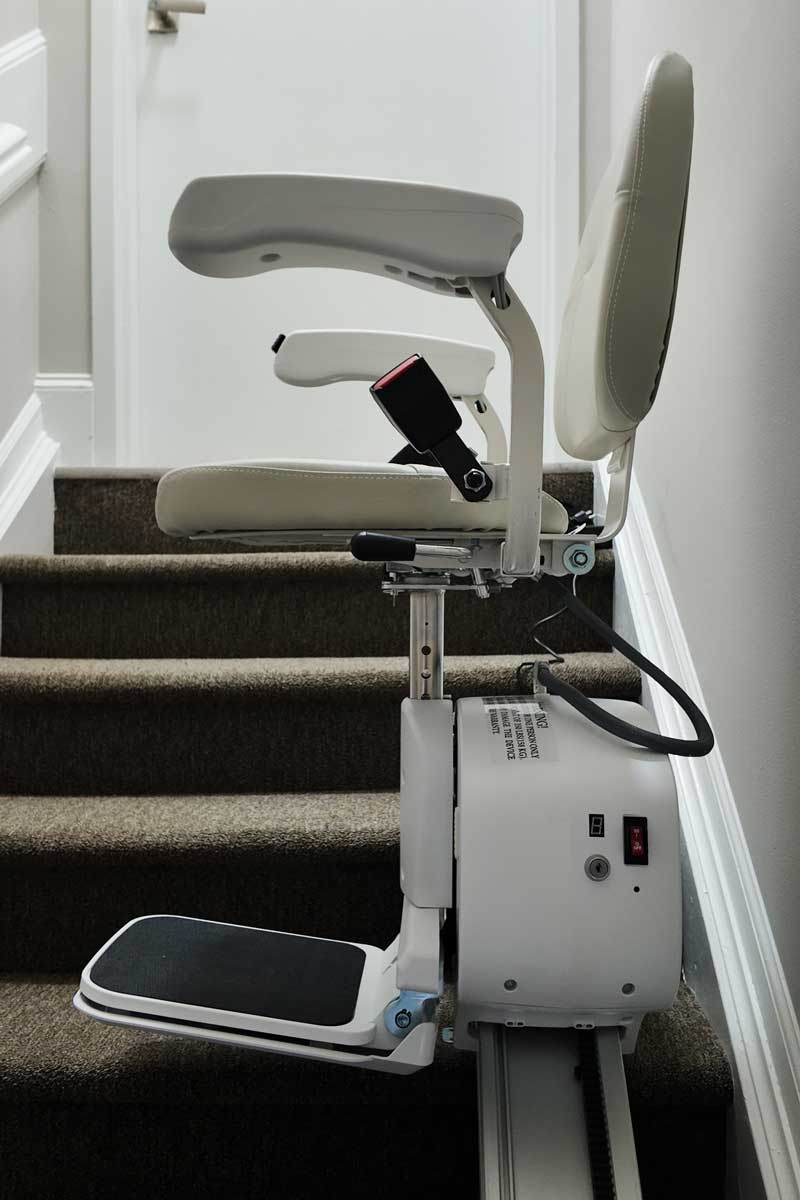

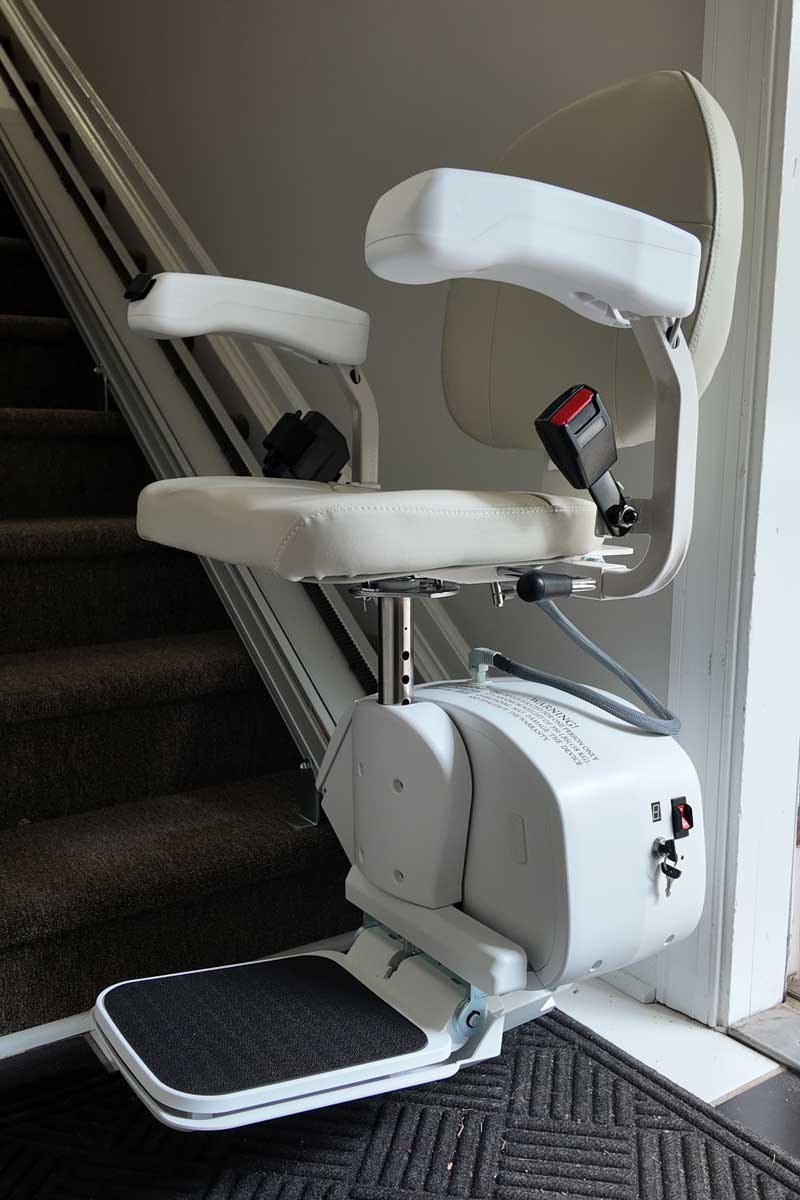

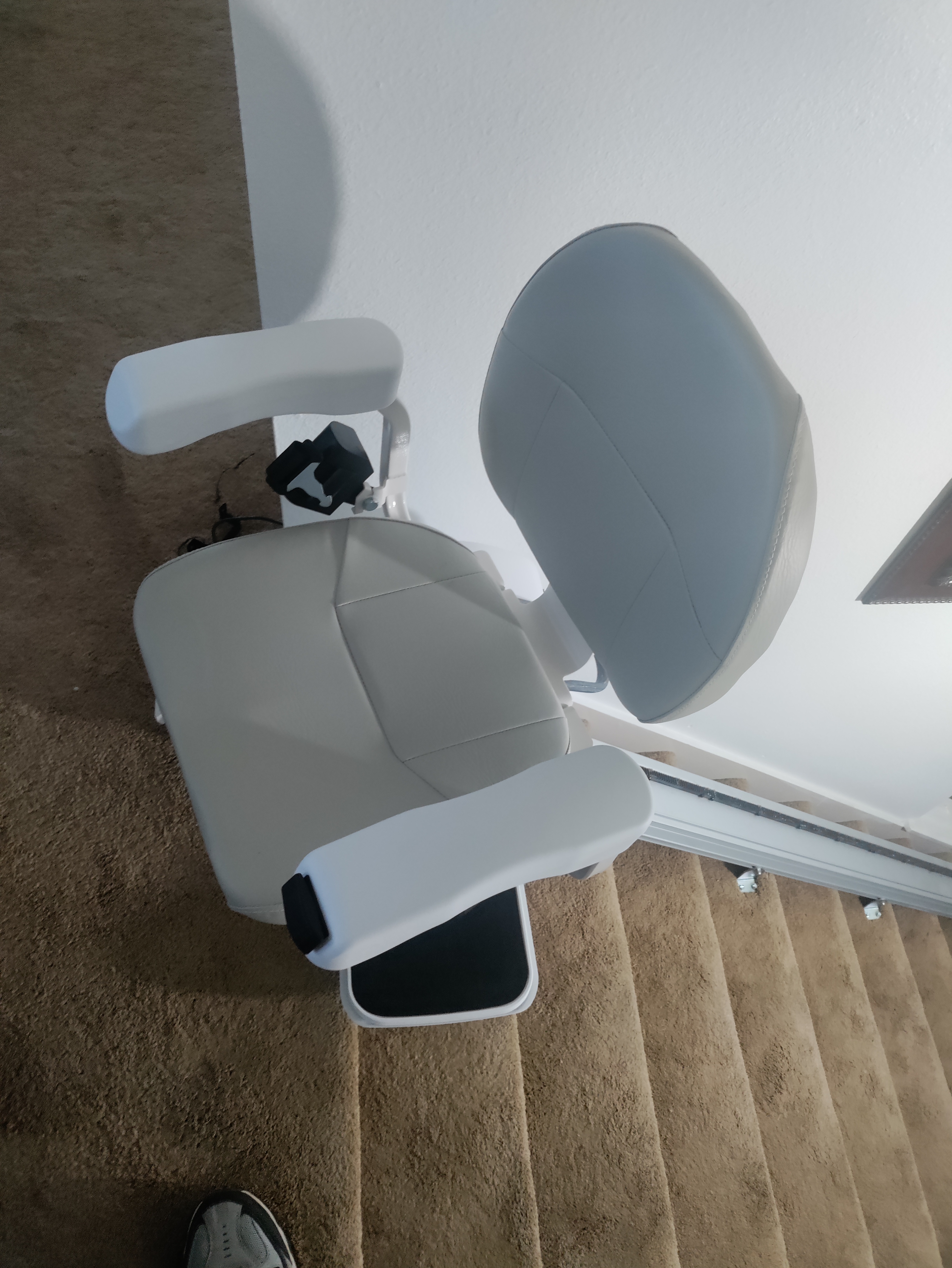

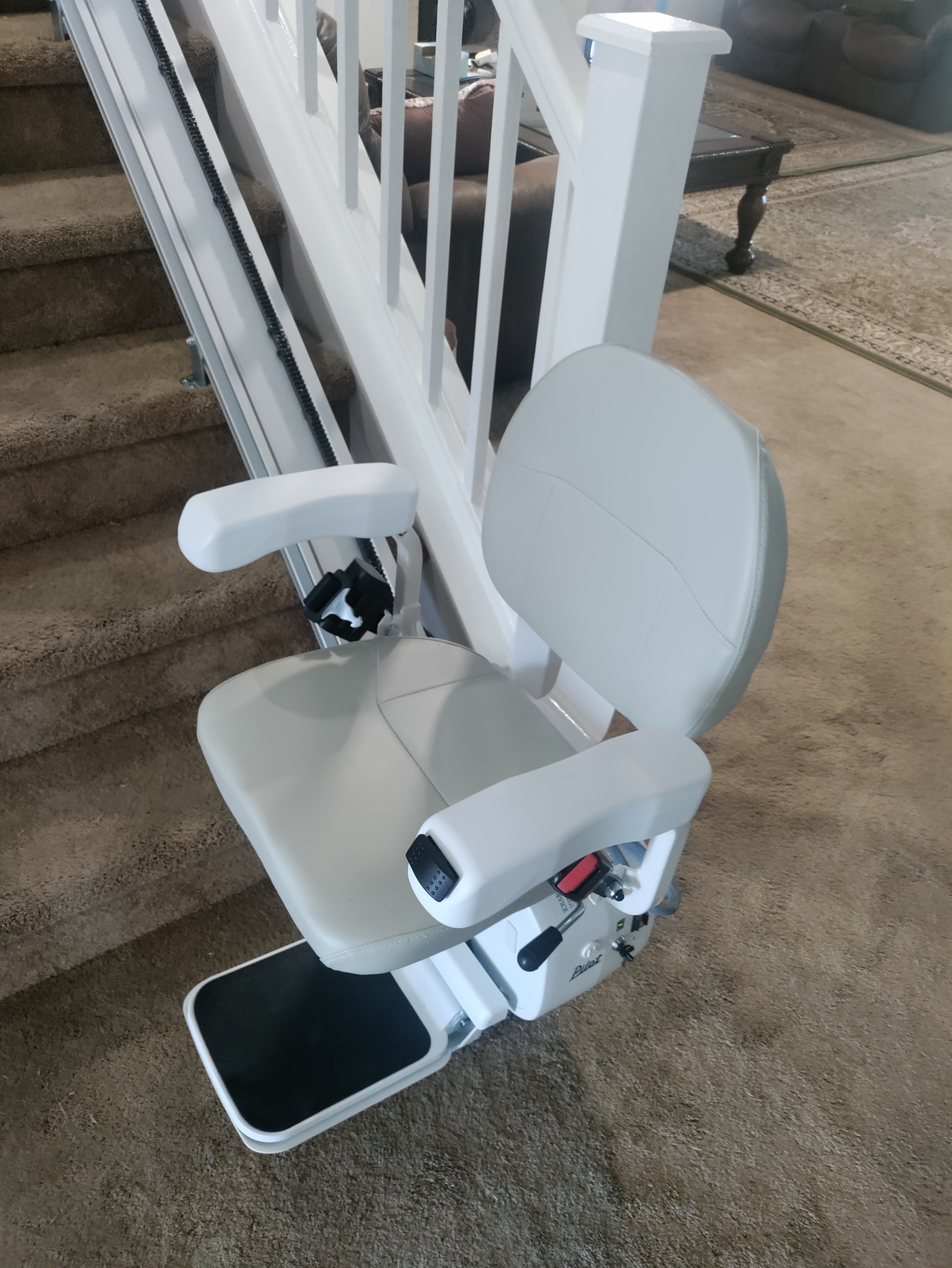

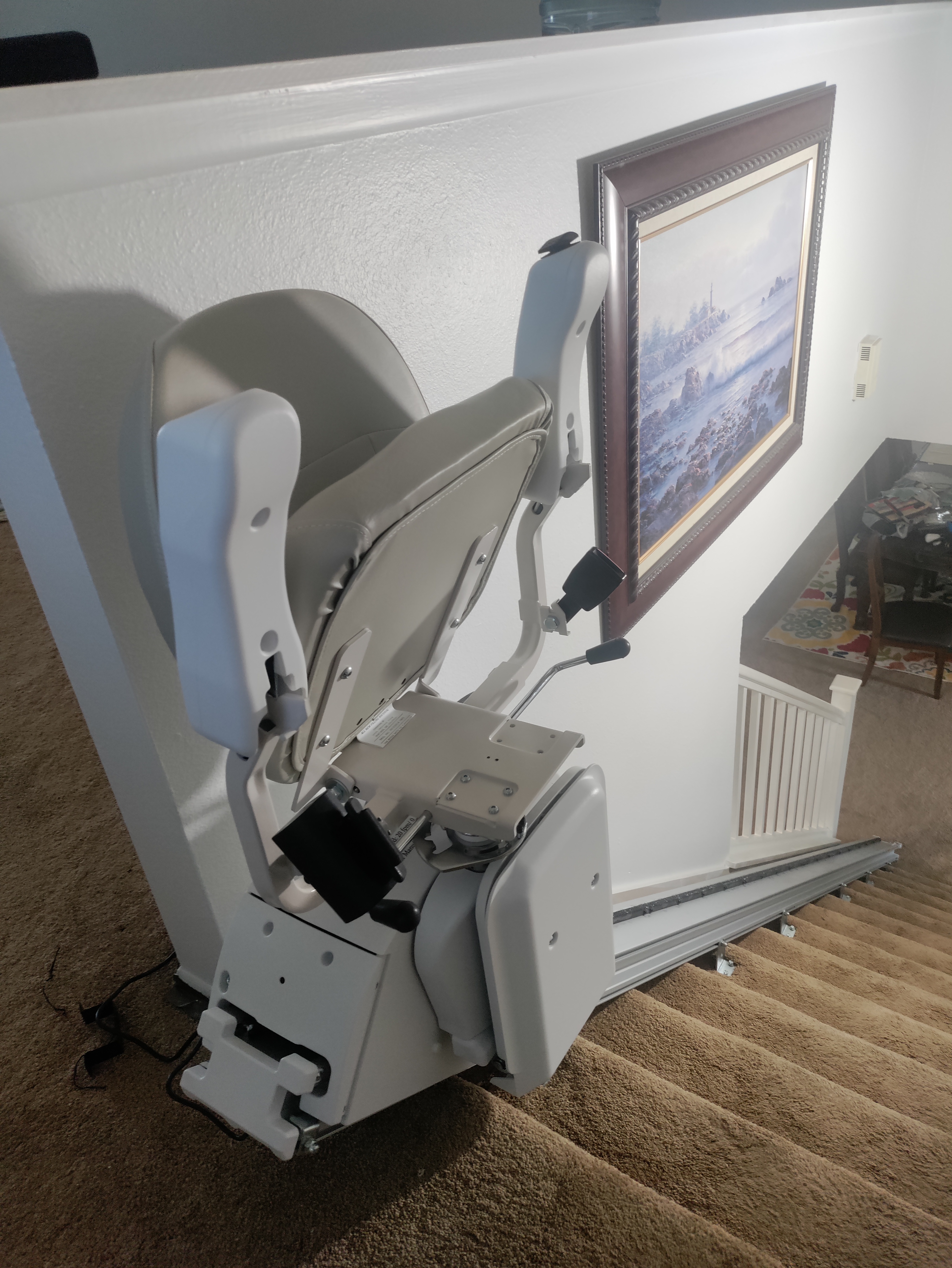

Crest HD - Stair Lift

The Crest HD Stair Lift delivers exceptional versatility, heavy-duty performance, and advanced safety features. With a 350 lb. weight capacity, its universal design supports both left and right-side installation, while adjustable armrest width, seat height, and toggle control offer customizable comfort. A 2-position swivel seat ensures safe and easy transfers.

Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.

Robust safety features include:
  • 5 directional safety sensors
  • Retractable seat belt
  • Armrest and seat position sensors
  • Over-speed governor
  • Electro-mechanical brake system
  • Key switch for controlled access
An optional automatic hinged rail ensures safe clearance at the bottom of the stairs, making the Crest HD an ideal solution for both performance and peace of mind.

Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
  • Drive Type

    Rack and Pinion

  • Battery Powered

    Yes

  • Self Installable

    Yes

  • Basic Installation Included

    No

  • Swivel Seat

    Yes

  • Standard Capacity

    350 lb

  • Max Track Length, Standard

    16'

  • Constant Pressure Controls

    Yes

  • Max Track Length, Optional

    32'

  • Footrest Safety Sensor

    Yes

  • Rail Angle, Min

    25°

  • Rail Angle, Max

    55°

  • Seat Width, Min

    16"

  • Seat Width, Max

    20"

  • Swivel Seat Rotation

    90 Degrees at top landing

  • Seat Depth

    16.36"

  • Flip-Up Seat

    Yes

  • Unit Footprint, In Use

    23"

  • Call Stations Included

    2 Wireless

  • Flip-Up Armrests

    Yes

  • Unit Footprint, Parked

    13"

  • Digital Diagnostics Display

    Yes

  • Key Lock

    Yes
